A Frame Tiny House
- Escape to Nature:
- A Heavy-Duty
- 2-Hour Assembly A-Frame House for Resorts & Glamping
- Start from $29,500 USD
What is the A-Frame Tiny House?
The Ultimate High-Performance Two-Story Modular System
The A-Frame Capsule is a 100% precision-engineered building system designed to combine architectural luxury with industrial efficiency. It solves the two biggest challenges in high-end modular construction: maintaining high aesthetic standards while ensuring rapid, cost-effective deployment in any environment.
Precision Factory Engineering
Every structural component is pre-drilled and finished in our smart factory. Sub-millimeter accuracy ensures a perfect fit on-site with zero manual cutting or adjustments required.
"Bolt-Together" Assembly
No welding, no specialized heavy machinery, and zero construction waste. The entire structure uses high-strength mechanical bolt connections. It’s clean, efficient "Lego-style" assembly for developers.
Double the Living Space
Unlike standard single-story modular units, our unique A-frame design offers a spacious two-story layout. It provides an iconic loft experience while maintaining a compact, efficient modular footprint.
Technical Specifications
Customizations for local building codes and extreme climates are available upon request.

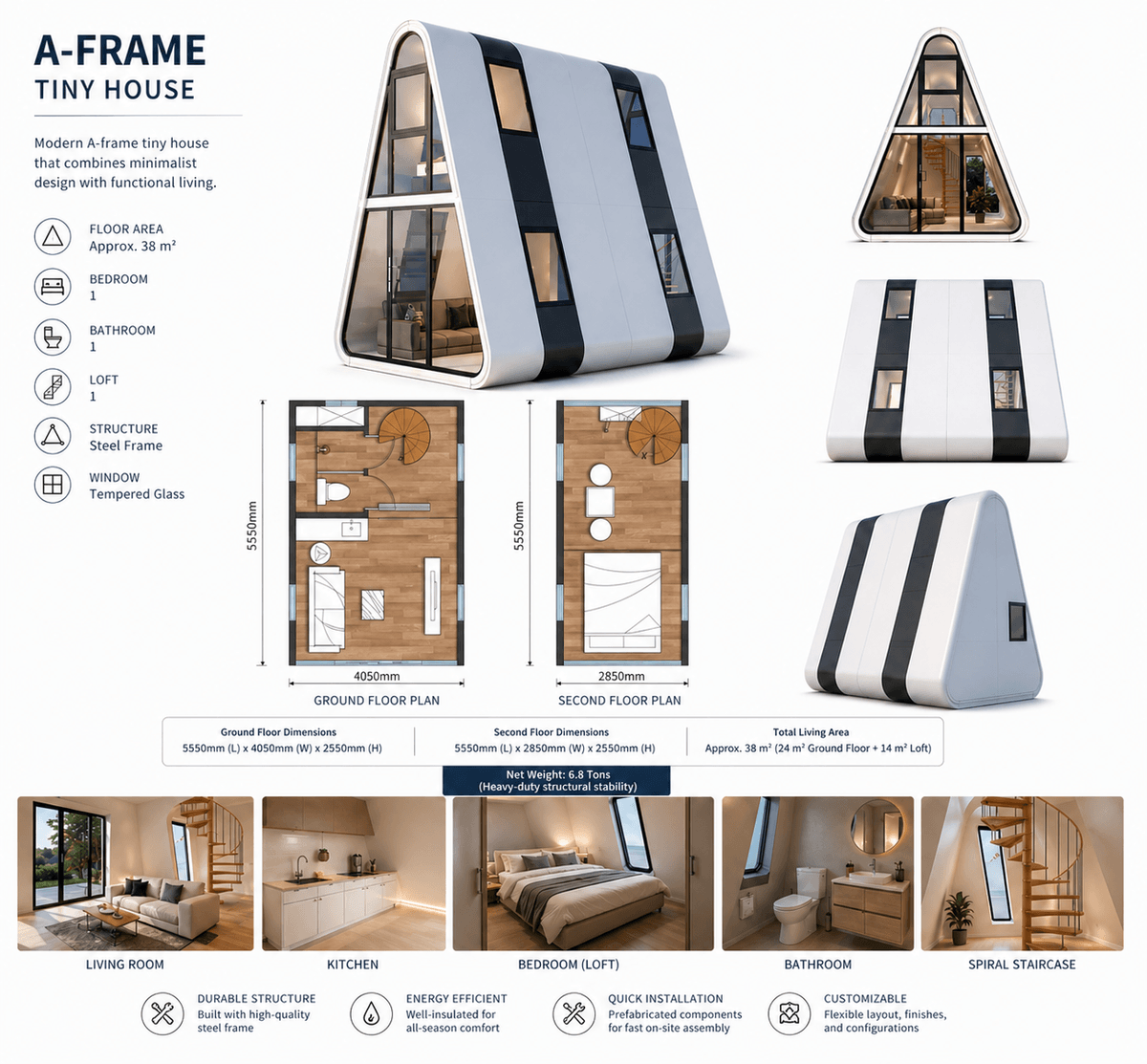

Dimensions & Layout
- Ground Floor Dimensions:5550mm (L) x 4050mm (W) x 2550mm (H)
- Second Floor Dimensions:5550mm (L) x 2850mm (W) x 2550mm (H)
- Total Living Area: Approx. 38 m² (24 m² Ground Floor + 14 m² Loft)
- Net Weight: 6.8 Tons(Heavy-duty structural stability)
- Occupancy: Optimized for 2-4 persons
Structural Frame
- Main Chassis: High-tensile Galvanized Steel Frame (Anti-corrosion treated)
- Exterior Shell: Fluorocarbon Aluminum Alloy Shell (Premium durability)
- Production: 40-day smart factory modular production cycle
- Installation: 2-hour rapid on-site assembly (Plug & Play system)
- Components: Includes Lifting Lugs and specialized fasteners for transport
Enclosure & Insulation
- Construction Type: Multi-layer Insulated, Waterproof, and Moisture-proof system
- Weather Resistance: Optimized for Rainstorm, Insolation, Strong Wind, and Major Snow
- Thermal Performance: High-performance insulation for extreme climates
- Exterior Finish: Architectural-grade Fluorocarbon coating (Maintenance-free)
Glazing & Openings
- Glass Type: Hollow Tempered Safety Glass (Panoramic floor-to-ceiling)
- Visual Design: Iconic 270-degree panoramic viewing system
- Door System: Customized high-security integrated door

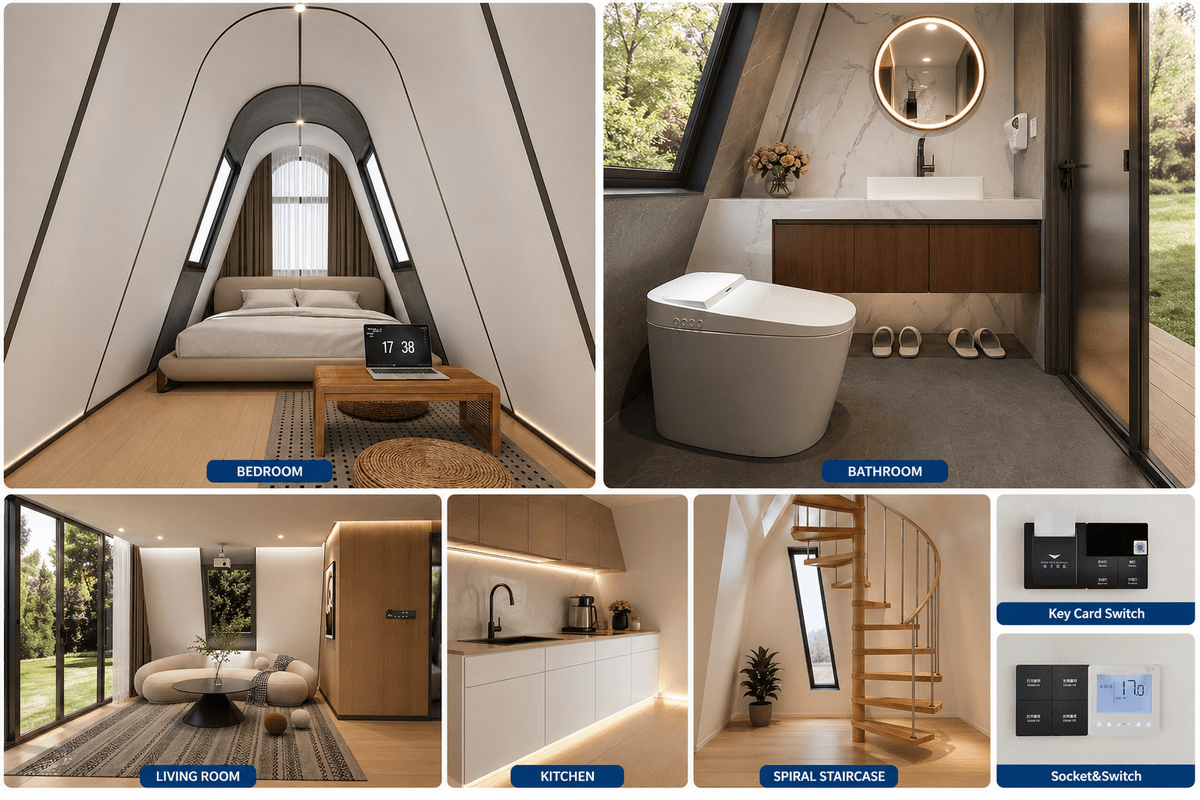

- Interior Features: Includes spiral staircase with "Starlight" LED handrail
Logistics
- Shipping Method: Delivered via Specialized Flat Rack (FR) or Open Top (OT) Container
- Loading Capacity: 1 unit per 40ft Flat Rack (subject to final configuration)


APPLICATIONS & USE CASES

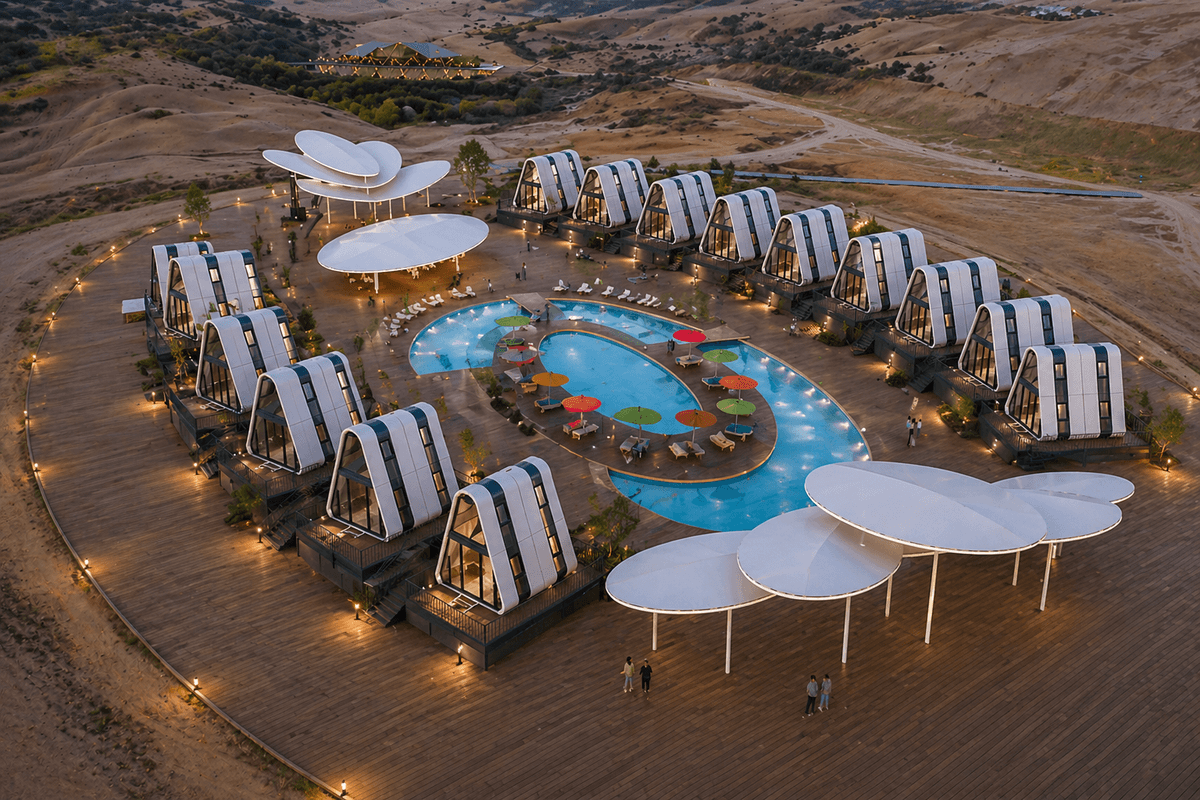

1. Luxury Eco-Resorts & Glamping
The ultimate "Hero" accommodation. Its unique geometric silhouette drives occupancy and high-yield returns for resort developers.
2. Private Remote Retreats
Designed for harsh environments—from snowy mountain peaks to coastal dunes. The A-frame shape is naturally resistant to extreme wind and snow loads.
3. Creative Commercial Boutiques
Perfect for pop-up galleries, designer showrooms, or specialty cafes seeking a high-impact architectural presence in scenic locations.

Frequently Asked Questions
Add a subtitle here
Can this A frame tiny house be installed on difficult terrains like mountains or marshes?
How is the product transported to my site?
How does the house perform in extreme temperatures?
Is the structure safe against strong winds or earthquakes?
What is the lead time for global shipping?
Does the shipping cost include local delivery to my site?
Get Your Free Quote Now
Feel free to reach out to us through any of the contact options provided below.
We'll get in touch with you within 24 hours.
