• Flatpack Container House

    Engineered for Durability: 20-Year Lifespan with 8 Units per 40ft HQ Container.

    Standard units start from $1,450. Contact us for bulk order discounts.

  • What is a Flatpack Container House?

    The Precision-Engineered Modular Building Block

    A Flat Pack Container is a semi-prefabricated modular system that bridges the gap between folding and detachable units. The roof and floor frames are 100% factory-completed with integrated drainage and flooring.

    • Integrated Roof & Floor: The most complex components are pre-assembled, ensuring 100% waterproof performance.
    • Interchangeable Wall Panels: 14 independent panels allow you to customize the position of doors and windows easily.
    • Stackable Design: Unlike folding units, our Flat Pack structure is strong enough to be stacked up to 3 stories for high-density accommodation.

  • Why Choose Our Flatpack Container House?

    Unmatched Versatility and Industrial-Grade Durability

    1. Optimized Logistics (8 Units per 40HQ)

    Our Flat Pack design allows 8 units to be loaded in bulk into one 40ft HQ container. This high-density shipping significantly reduces international freight costs while ensuring all components arrive safely.

    2. Rapid & Simple Installation

    Efficiency meets simplicity. A team of 4 people can install 4 complete sets per day. With the top and bottom frames already finished, the on-site work is limited to standing the columns and slotting in the wall panels.

    3. Permanent Structure Quality (20-Year Life Span)

    Built for long-term use, the frame is made of high-tensile light steel with galvanized protection. Combined with fireproof sandwich panels, it offers a reliable 20-year service life in harsh environments

    4. Versatile Application Scenarios

    Versatile Application Scenarios from hotel apartments and schools to emergency hospitals and military camps, the Flat Pack system is the industry standard for professional modular infrastructure

  • Flatpack Container House Specifications

    Technical Specifications

    Standard Size

    • External: 5950 x 2438 x 2896 mm (LWH).
    • Internal: 5740 x 2228 x 2500 mm.
    • Custom sizes supported.

    Area

    Around 14.5 sqm

    Structural System

    • Main Frame: Galvanized steel columns and beams
    • Steel Grade: Q235 / Q355 optional
    • Connection: High-strength bolt connection system

    👉 This flatpack container house structure is designed for repeated assembly and disassembly without damage.

    Wall & Insulation System

    • Wall Panel Type: Sandwich panel
    • Core Materials: EPS / Rock Wool / PU optional
    • Panel Thickness: 50mm / 75mm
    • Insulation Performance: Suitable for different climate conditions

    👉 Different insulation options are available for modular container buildings in tropical, desert, or cold regions.

    Roof System

    • Roof Type: Insulated steel roof system
    • Structure: Steel sheet + insulation layer
    • Waterproof Design: Multi-layer sealing system
    • Drainage: Built-in drainage structure

    Floor System

    • Base Structure: Steel frame support
    • Floor Material: MGO board / fiber cement board
    • Surface Finish: PVC flooring / optional finishes

    Door & Window System

    • Door Type: Steel door / aluminum door
    • Window Type: PVC sliding window / aluminum window
    • Glass Type: Single / double glass optional

    Electrical System (Optional)

    • Wiring System: Pre-installed electrical layout
    • Lighting: LED lighting system
    • Power Standard: Customizable based on country

    Customization Options

    • Layout design (free support)
    • Bathroom and plumbing system
    • Kitchen module
    • Exterior decoration options
    • Insulation upgrades

    👉 We provide custom modular container building solutions based on project requirements.

    Packing & Loading

    • Packing Type: Flatpack
    • Loading Capacity: 6-8 units per 40HQ container

    Performance Parameters

    • Wind Resistance: Level 10
    • Seismic Resistance: Grade 8
    • Fire Resistance: Depends on panel material
    • Service Life: 20 years

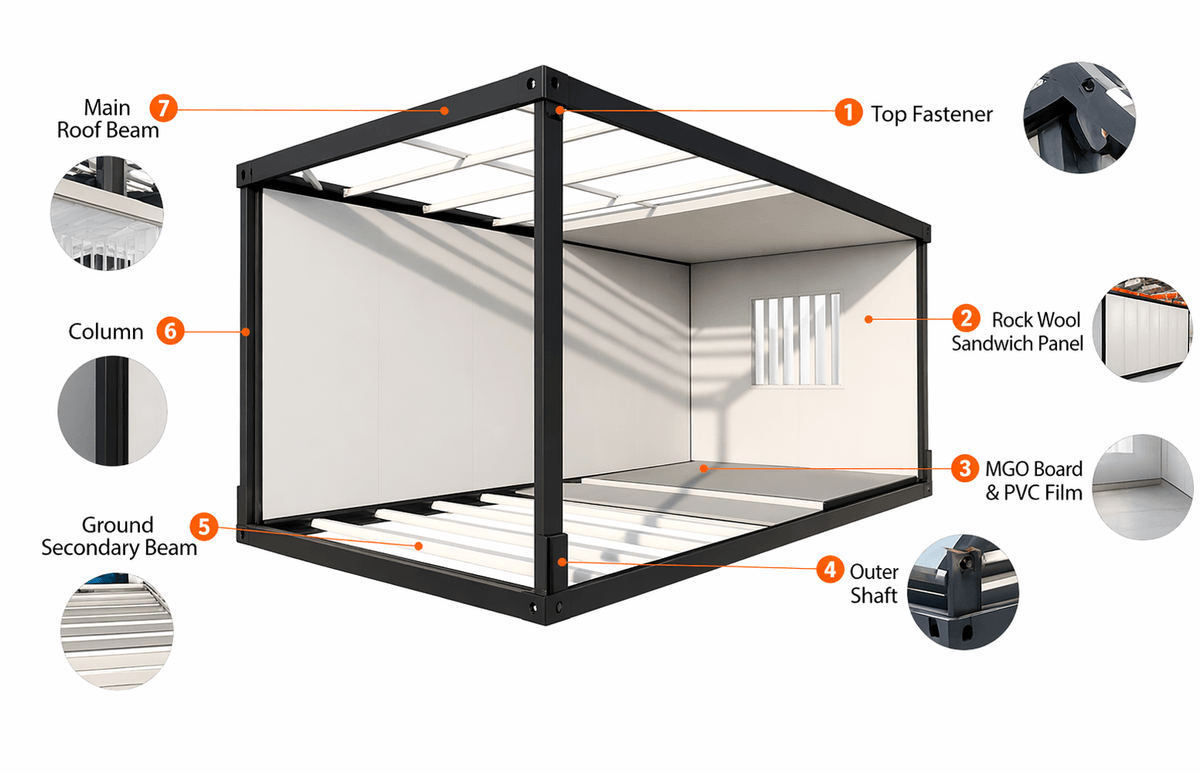

  • Structural & Material Highlights

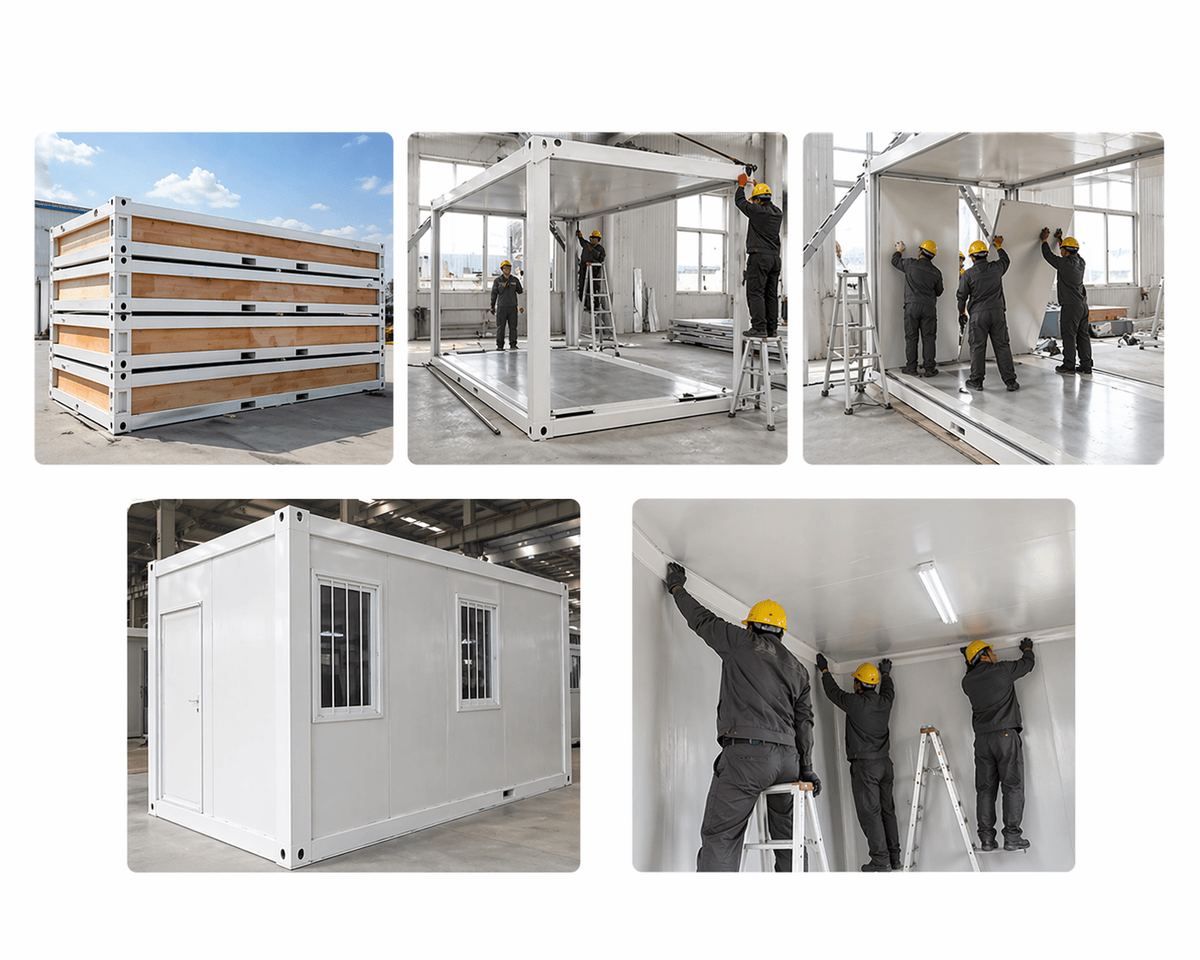

  • 4-Step Rapid Installation Process

    The Flat Pack system is designed for mechanical assembly using standard tools. No specialized welding is needed on-site.

    Step 1: Install the Bottom Frame

    Secure the pre-assembled floor base on the foundation.

    Step 2: Install the Four Columns

    Bolt the four corner posts to the base.

    Step 3: Install the Top Frame

    Lift and secure the factory-finished roof structure.

    Step 4: Slot in Wall Panels

    Install the 14 interchangeable panels, doors, and windows to complete the unit.

    Optimized Layouts & Application Scenarios

    Construction & Mining: Rapidly deploy worker dormitories and site offices.

    Emergency Relief: Instant hospitals, mobile clinics, and resettlement housing.

    Commercial & Education: Temporary classrooms, hotel apartments, and showroom extensions.

    Military: Secure and mobile barracks for rapid deployment in any terrain.

  • Frequently Asked Questions(FAQ)

  • Get Your Free Quote Now

    Feel free to reach out to us through any of the contact options provided below.

    We'll get in touch with you within 24 hours.
