• Folding Container House

    Engineered for Speed: 10-Minute Instant Setup with 8 Units per 40ft HQ Container.

    Standard units start from $1,450. Contact us for bulk order discounts.

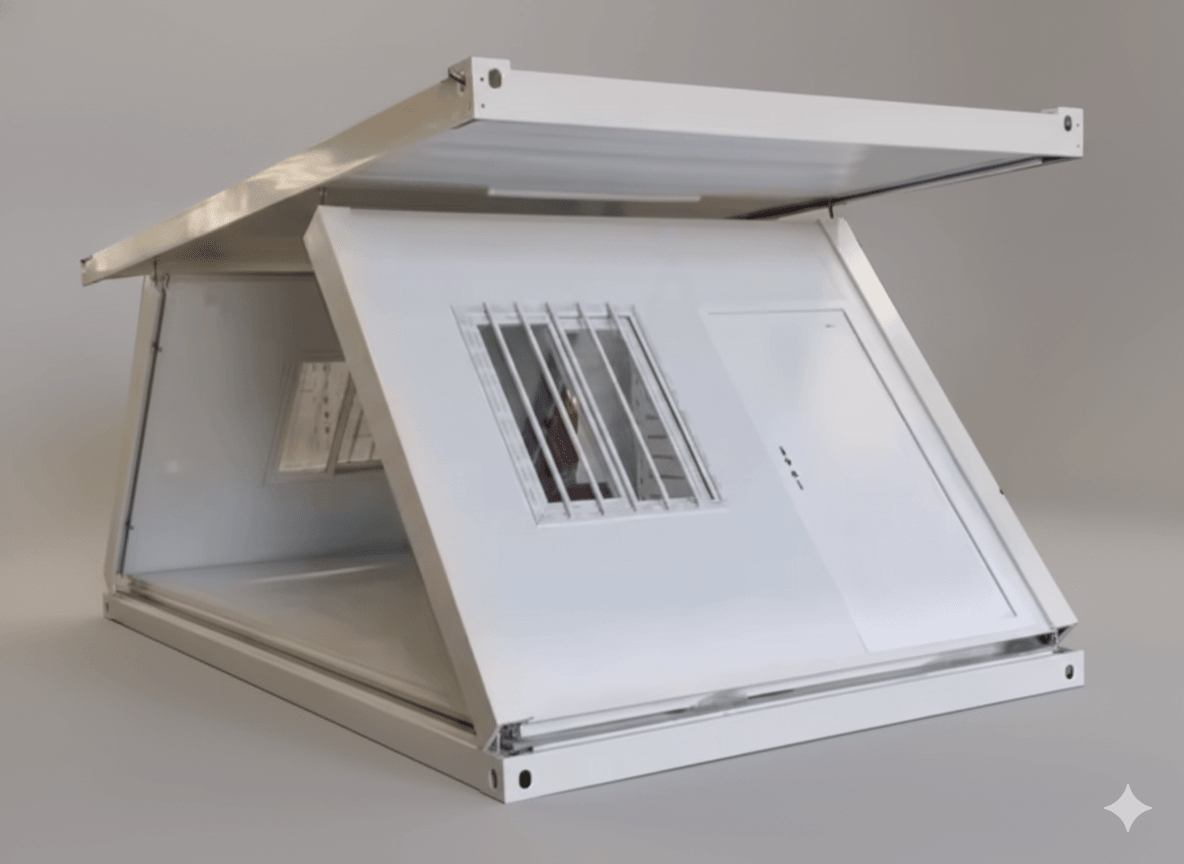

  • What is a Folding Container House?

    A Fully Integrated "Pop-Up" Building System

    A Folding Container House is a specialized modular unit designed for maximum speed and zero construction waste. Unlike detachable units, the folding house is a complete, pre-integrated structure .

    • 100% Factory Integrated: Doors, windows, and electrical systems are all pre-installed in our factory.
    • 10-Minute Rapid Setup: The unit arrives pre-assembled; simply lift the roof with a crane to unfold the walls.
    • Ready for Immediate Use: Once secured with bolts, the unit is fully functional for occupancy or office use

  • Why Choose Our Folding Container House?

    Speed, Reusability, and Unmatched ROI for Urgent Projects

    1. 10-Minute Instant DeploymentTime is profit.

    Time is profit. Our Z-folding design allows a standard unit to be expanded and secured in just 10-15 minutes , making it the premier choice for urgent construction camps and emergency relief.

    2. Standardized Logistics (8 Units per 40HQ)

    Our units are engineered for optimal transport efficiency, allowing 8 complete sets to be loaded into a single 40ft HQ container. This ensures safe transit and consistent shipping costs for global delivery.

    3. Robust Steel Structure

    Safety is never sacrificed for speed. Each unit features a light steel frame and sandwich panels , providing a stable 20-year service life.

    4. 100% Relocatable & Sustainable

    Perfect for temporary sites. When a project ends, simply fold the house back up and move it to the next location. It is a cost-effective, long-term asset for mobile operations.

  • Folding Container House Specifications

    Technical Specifications

    Standard Size

    • External: 5950 x 2438 x 2600 mm (LWH).
    • Internal: 5740 x 2228 x 2200 mm.
    • Custom sizes supported.

    Area

    Around 13 sqm

    Structural System

    • Main Frame: Galvanized steel columns and beams
    • Steel Grade: Q235 / Q355 optional
    • Connection: High-strength bolt connection system

    👉 This folding container house structure is designed for repeated assembly and disassembly without damage.

    Wall & Insulation System

    • Wall Panel Type: Sandwich panel
    • Core Materials: EPS / Rock Wool / PU optional
    • Panel Thickness: 50mm / 75mm
    • Insulation Performance: Suitable for different climate conditions

    👉 Different insulation options are available for modular container buildings in tropical, desert, or cold regions.

    Roof System

    • Roof Type: Insulated steel roof system
    • Structure: Steel sheet + insulation layer
    • Waterproof Design: Multi-layer sealing system
    • Drainage: Built-in drainage structure

    Floor System

    • Base Structure: Steel frame support
    • Floor Material: MGO board / fiber cement board
    • Surface Finish: PVC flooring / optional finishes

    Door & Window System

    • Door Type: Steel door / aluminum door
    • Window Type: PVC sliding window / aluminum window
    • Glass Type: Single / double glass optional

    Electrical System (Optional)

    • Wiring System: Pre-installed electrical layout
    • Lighting: LED lighting system
    • Power Standard: Customizable based on country

    Customization Options

    • Layout design (free support)
    • Bathroom and plumbing system
    • Kitchen module
    • Exterior decoration options
    • Insulation upgrades

    👉 We provide custom modular container building solutions based on project requirements.

    Packing & Loading

    • Packing Type: Flatpack
    • Loading Capacity: 6-8 units per 40HQ container

    👉 Folding Height: 390mm

    Performance Parameters

    • Wind Resistance: Level 10
    • Seismic Resistance: Grade 8
    • Fire Resistance: Depends on panel material
    • Service Life: 10–15 years

  • Structural & Material Highlights

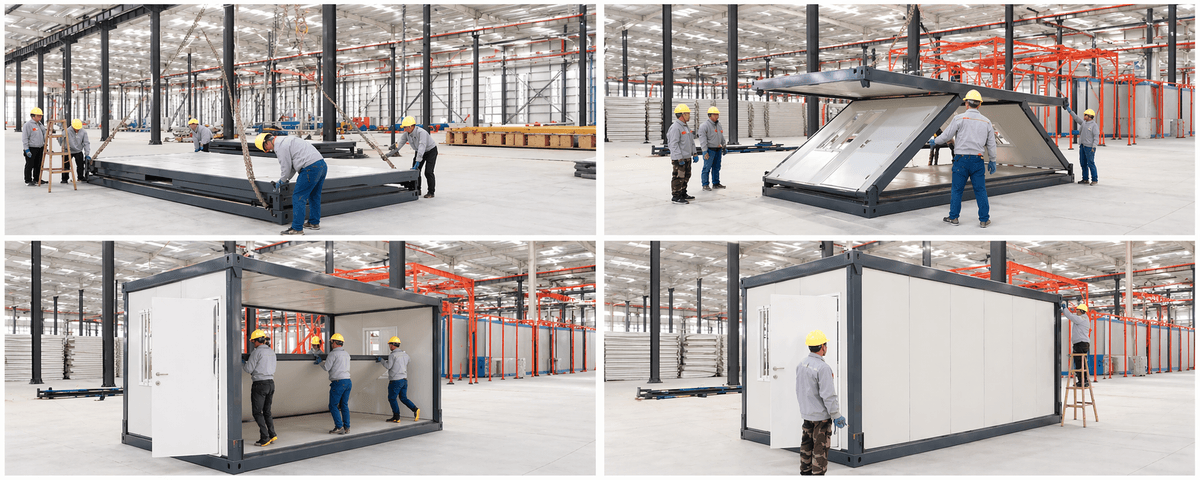

  • 4-Step Rapid Installation Process

    Our Z-Folding Container House is engineered for the fastest deployment in the modular building industry. Unlike traditional prefabs, the entire structure is pre-assembled with high-strength hinges, allowing a crew of two and a single crane to complete the setup with zero on-site construction mess.

    Step 1: Positioning & Preparation

    Place the folded unit on a level foundation. Ensure the crane hooks are securely attached to the four lifting points on the top frame.

    Step 2: Mechanical Unfolding

    Slowly lift the roof frame. The precision-engineered walls will automatically unfold and expand into their vertical position as the roof rises.

    Step 3: Structural Securing

    Once the walls are fully extended, lower the roof slightly to align with the columns. Install and tighten the high-strength bolts at the corners to lock the structure in place.

    Step 4: Completion & Occupancy The installation is complete. Since doors, windows, and flooring are pre-integrated, the unit is immediately ready for furniture and occupancy.

    Optimized Layouts & Application Scenarios

    Construction & Mining: Rapidly deploy worker dormitories and site offices.

    Emergency Relief: Instant hospitals, mobile clinics, and resettlement housing.

    Commercial & Education: Temporary classrooms, hotel apartments, and showroom extensions.

    Military: Secure and mobile barracks for rapid deployment in any terrain.

  • Frequently Asked Questions(FAQ)

  • Get Your Free Quote Now

    Feel free to reach out to us through any of the contact options provided below.

    We'll get in touch with you within 24 hours.
