• Expandable Container House 20ft

    From $5000-$7000

  • Expandable Container House 20ft Specifications

    Expanded Size

    5900*6454*2480mm

    Shrink Size

    5900*2200*2480mm

    Area

    38.07㎡

    Weight

    2500kg

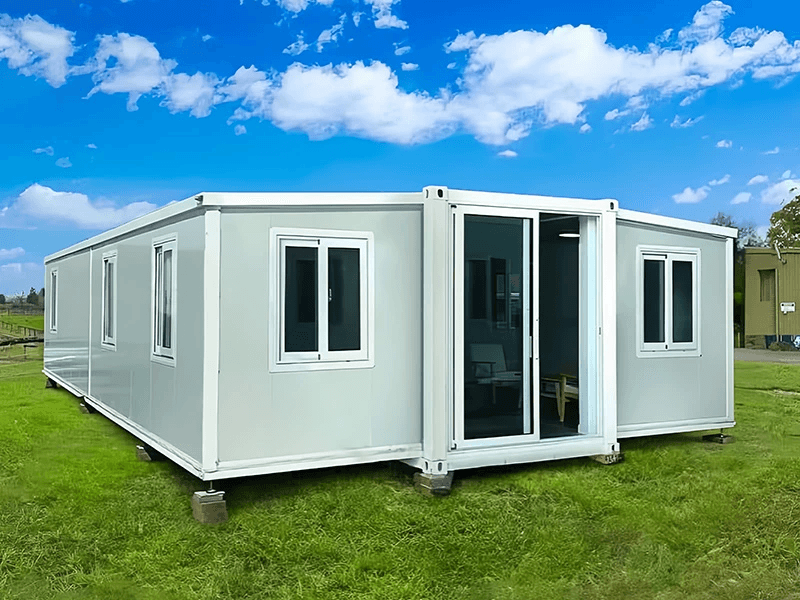

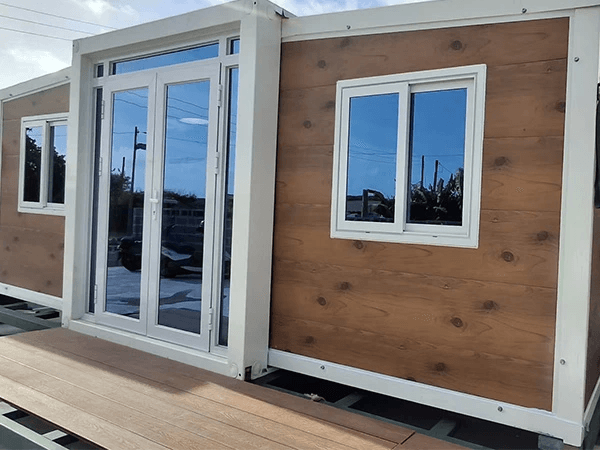

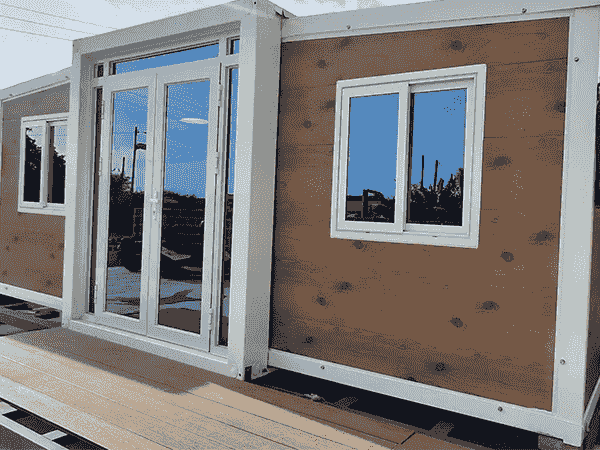

  • What is a 20ft expandable container house?

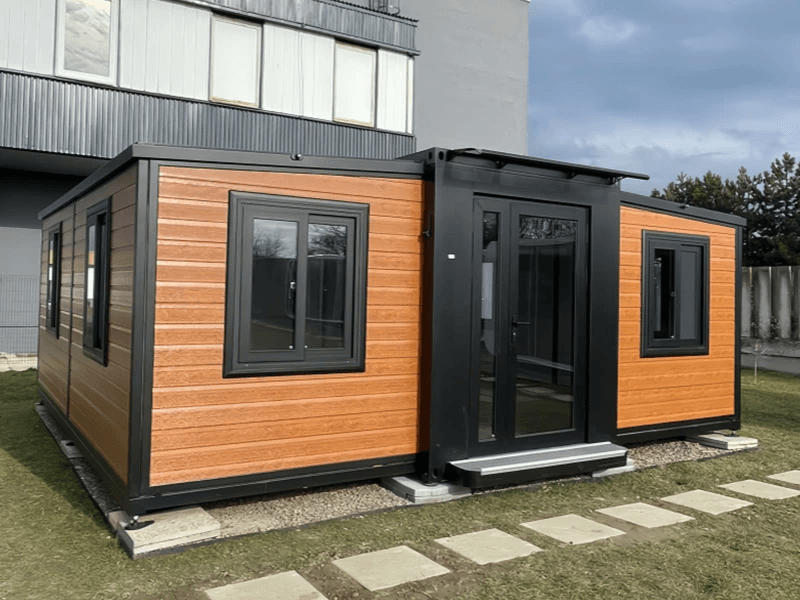

    The UVO 20ft expandable container house combines innovative design with sustainable principles to provide an efficient and environmentally friendly living space. It adopts hot-dip galvanized steel structural frame and modular double-wing structure deployment mode, which can be quickly assembled within 25 minutes. When expanded, the 20ft space is perfectly suited to accommodate a family of 1-4 people..

    KEY FEATURES:

    • Open-plan or 1-4 bedrooms
    • Pre-wired & pre-plumbed
    • 25mins Quick, easy assembly
    • Modern-finish kitchenette
    • Complete bathroom (shower, vanity, toilet)
    • Expandable for mobile living

  • 20ft Expandable Container House Advantages

  • Flexible and Space-Saving Design

    The 20ft Expendable Container House offers a highly adaptable design, allowing for easy expansion and contraction based on your space requirements. In its expanded form, the 20ft model provides 38.07㎡ of space. It can be easily folded and transported, making it perfect for a family of three!

  • Fully Equipped for Comfort

    UVO 20ft Expendable Container Houses come fully equipped with all the essential amenities for modern living and working. Each unit features a kitchen with cabinets, sink, and stove, as well as a standard bathroom with a shower. Additionally, the aluminum alloy windows and double doors ensure durability and ease of use, while the front balcony with a fence adds extra outdoor space.

  • Versatile Applications

    Designed for a wide range of uses, the 20ft Expendable Container House is ideal for large portable offices, temporary living spaces, and even emergency shelters. Its compact yet spacious nature makes it perfect for family living or as medical rooms in crisis situations, providing a safe and comfortable environment wherever it’s needed..

  • Why Choose Our 20ft Expandable Houses?

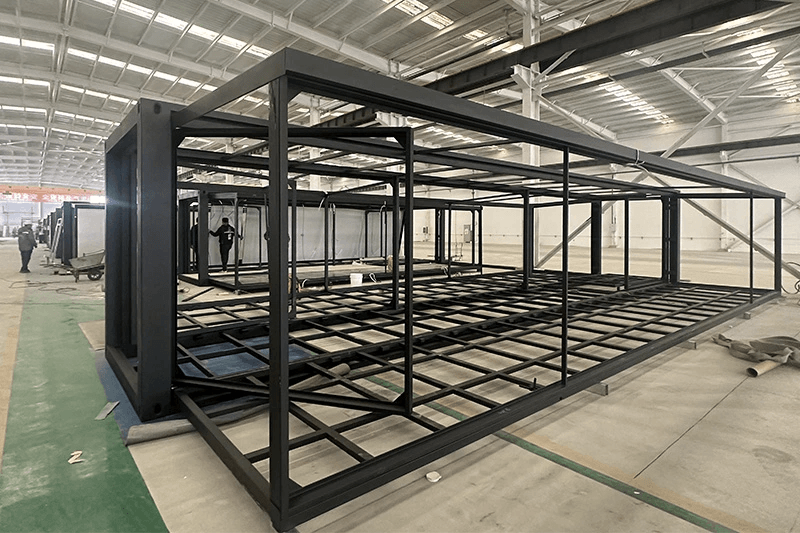

    High-Strength Steel Structure

    Using high-quality, specially designed structural steel, the top and bottom beams boast a yield strength of 235 MPa, ensuring precise shaping. Full-size galvanized angle fittings (210 x 150 x 160 mm) are durable and withstand repeated lifting and lowering without deformation, ensuring long-term structural stability.

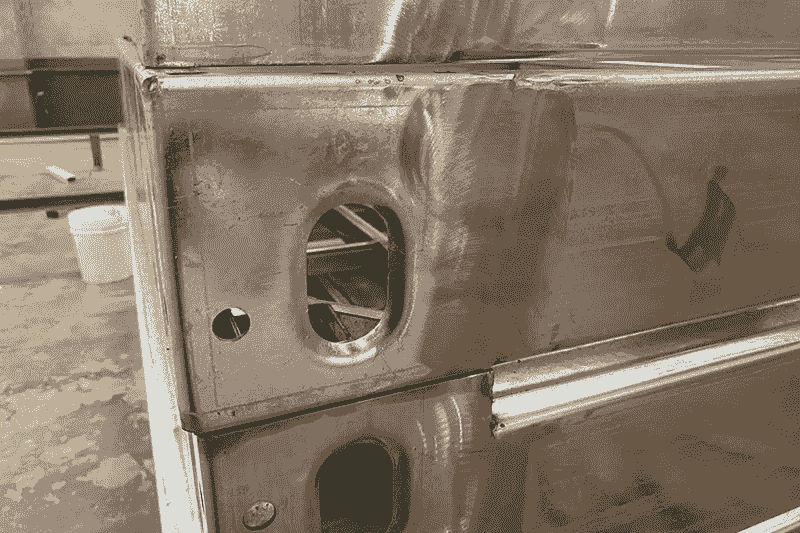

    Polished Surface and Powder Coating

    The sprayed surface is polished, and the welds are professionally polished to ensure a smooth and even installation. The beams and angle fittings are galvanized for rust and corrosion resistance. The powder coating and baking process adheres to strict temperature and time controls to ensure no omissions or surface defects. The powder is non-toxic, recyclable, and has a service life of over three years.

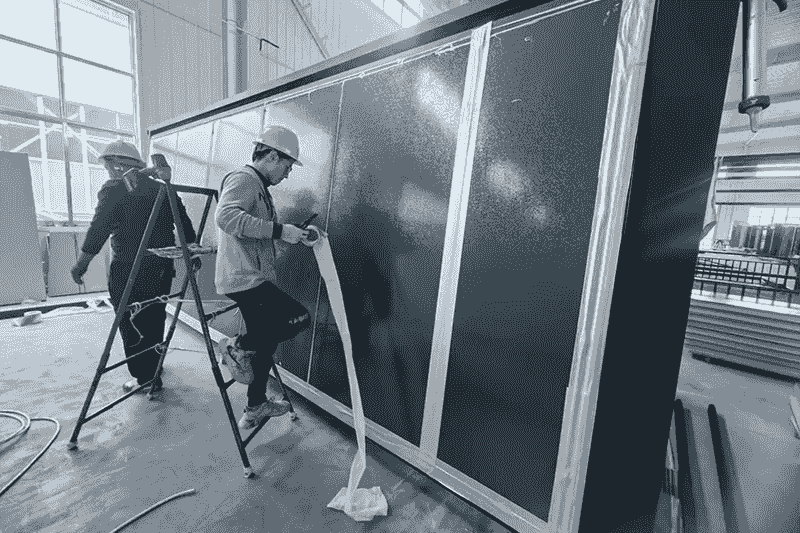

    Waterproof Structural Sealant

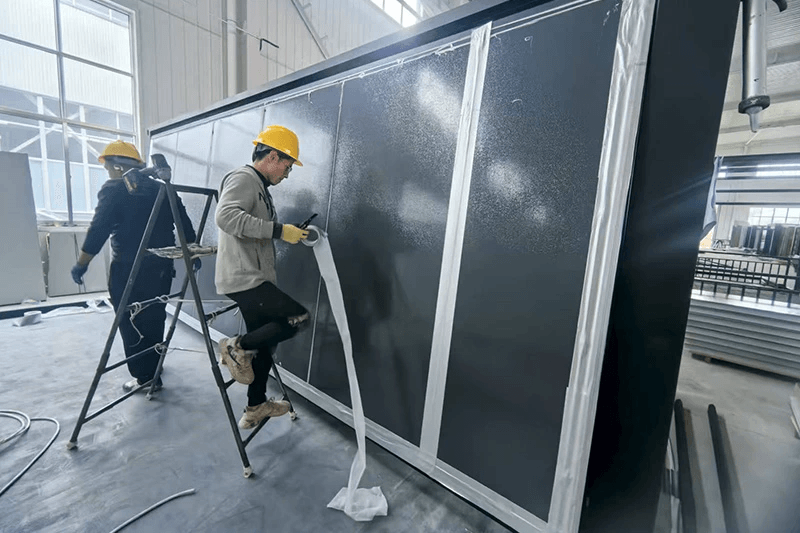

    High-quality structural sealant is used at the wall panel joints, and butyl tape is used on the roof panels for dual protection. Each unit is 100% waterproof tested to ensure long-term leak-free operation and excellent drainage performance.

    Standardized production and transportation

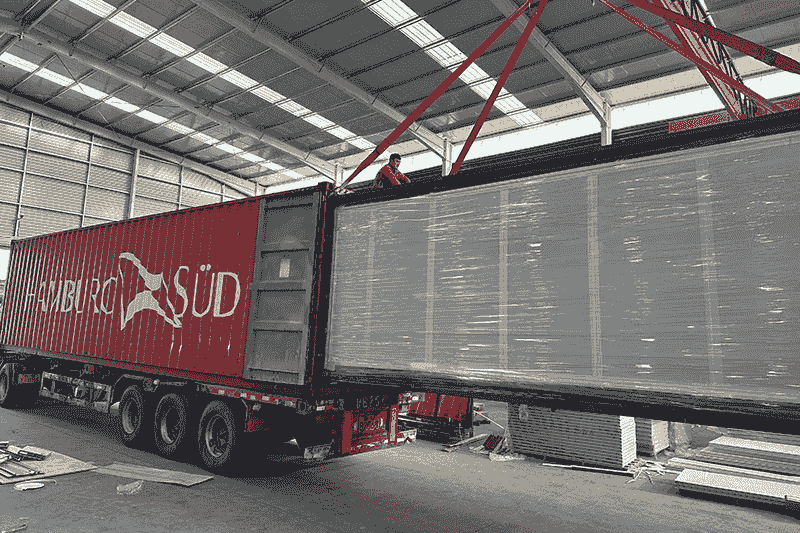

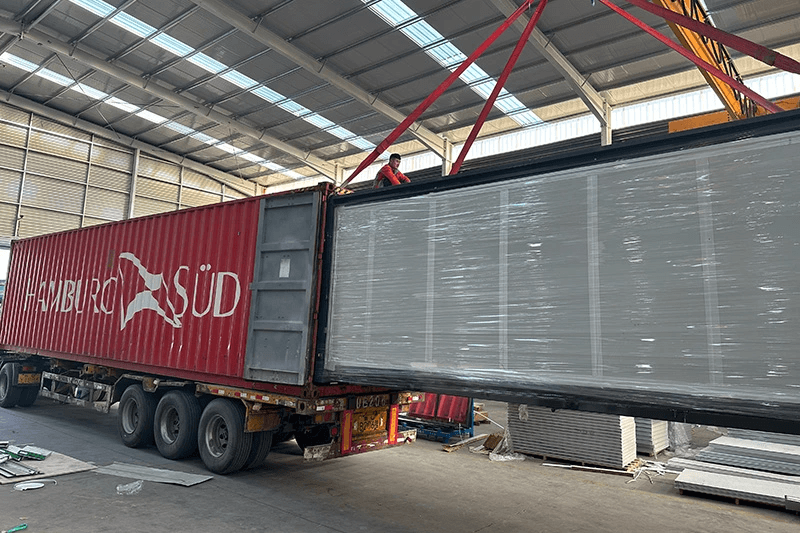

    Our factory uses mature molds and standardized dimensions for production, enabling quick and efficient on-site installation, reducing construction complexity and increasing project delivery speed. During transportation, one 40ft high cube container can accommodate two 20ft container houses.

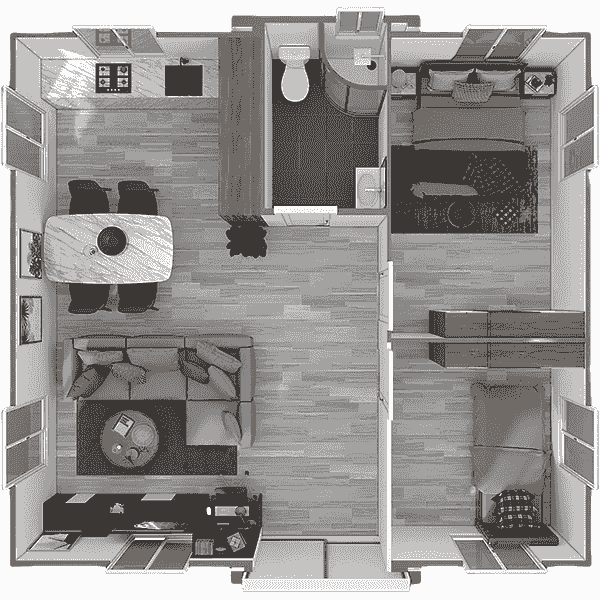

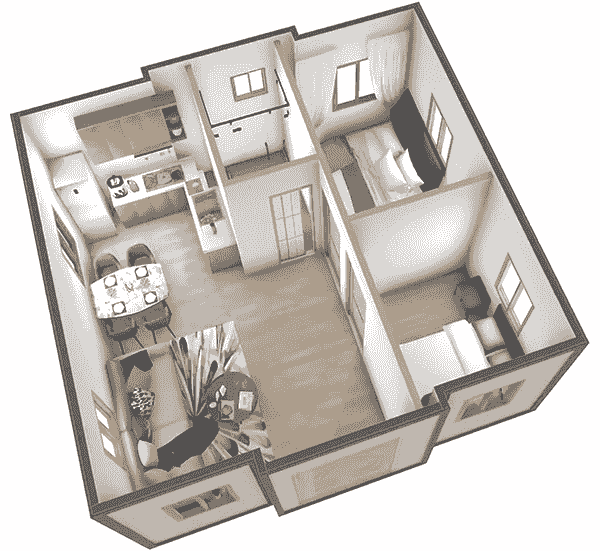

  • 20ft Expandable Container House Layout Options

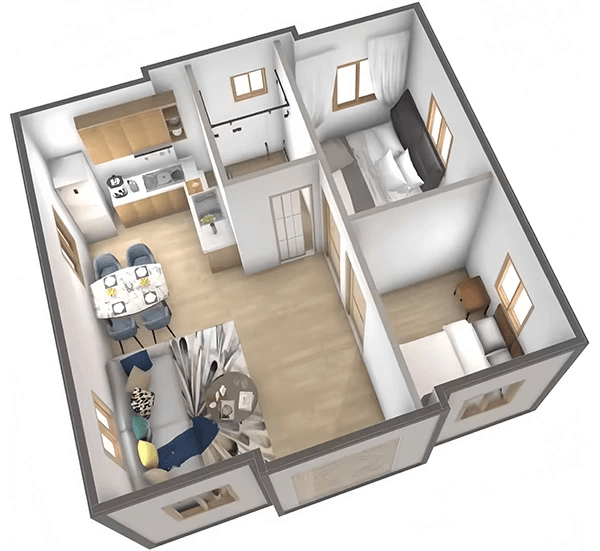

    UVO 20ft expandable container houses are designed to create spacious, comfortable and well-lit living spaces. We offer a variety of flexible house types, including one-bedroom to four-bedroom layouts, suitable for different needs such as personal residence, family use or project support. Each unit has a separate living area, a fully functional kitchenette and a separate bathroom with a shower and toilet to meet daily living needs.

    Note: The unit design may be slightly adjusted based on inventory and customization requirements, and the specific room type will be confirmed before placing an order.

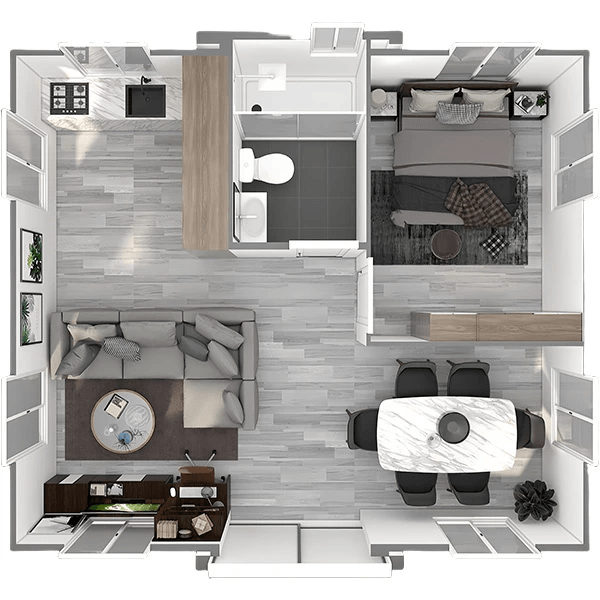

    1 Bedroom and 1 Living Room

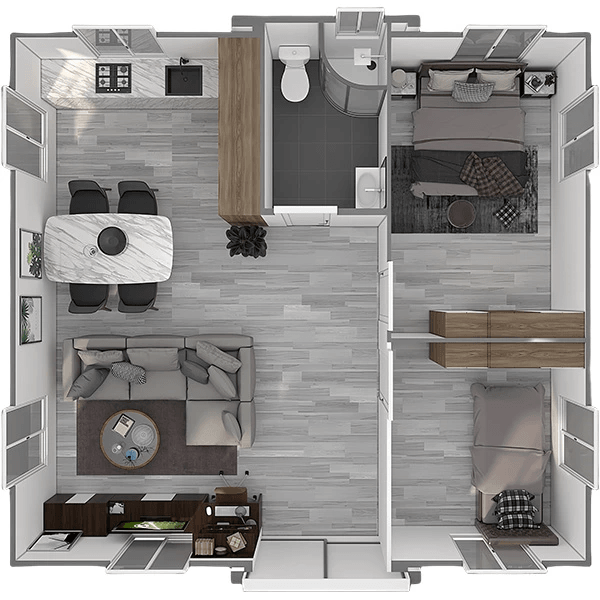

    2 Bedrooms and 1 Living Room

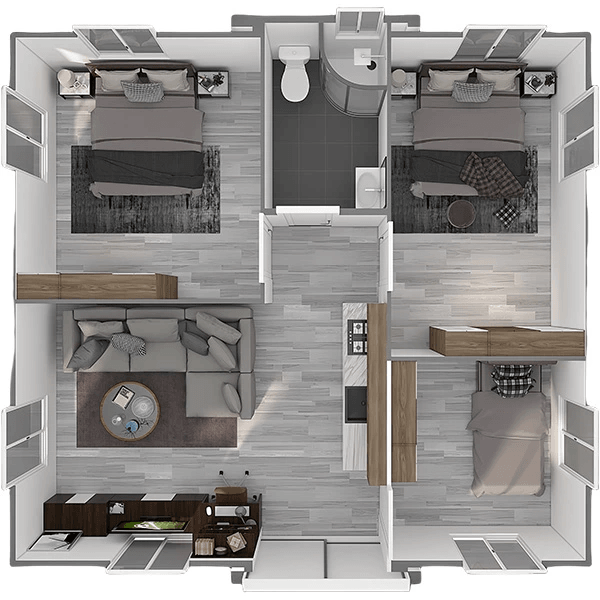

    3 Bedrooms and 1 Living Room

  • Expandable Container House Area Design Details

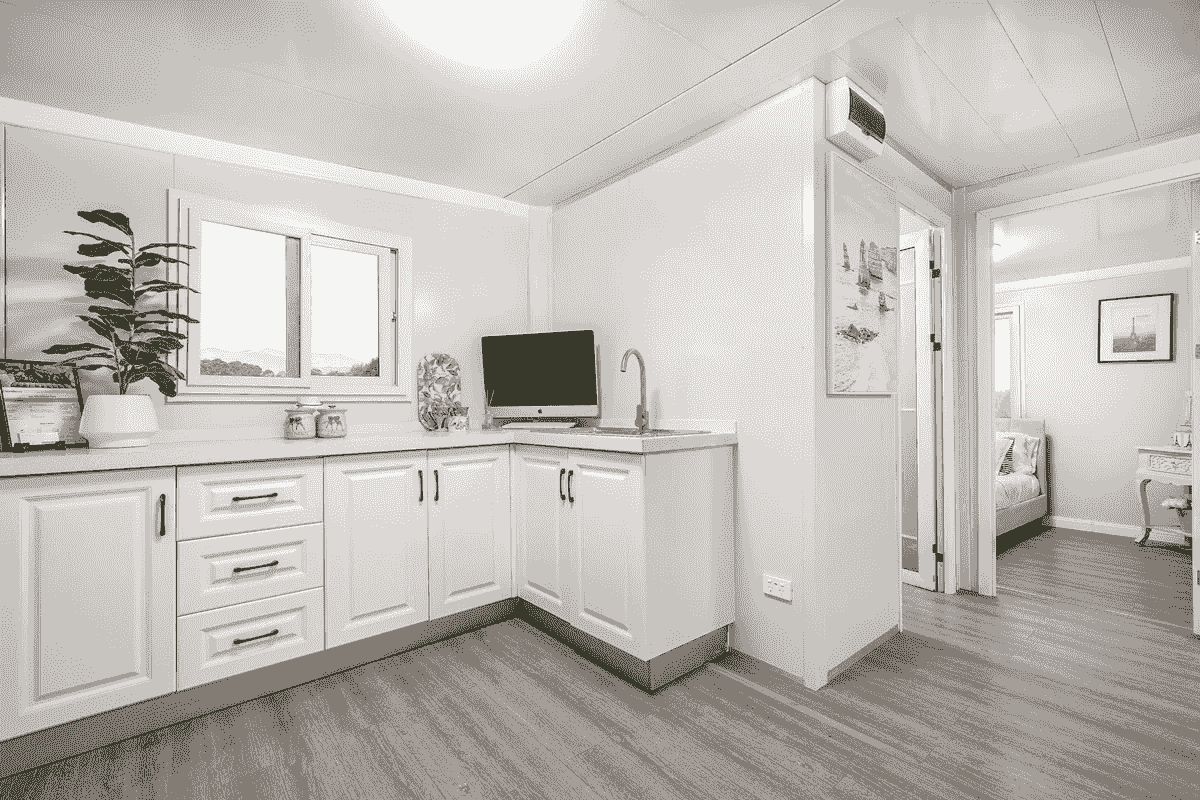

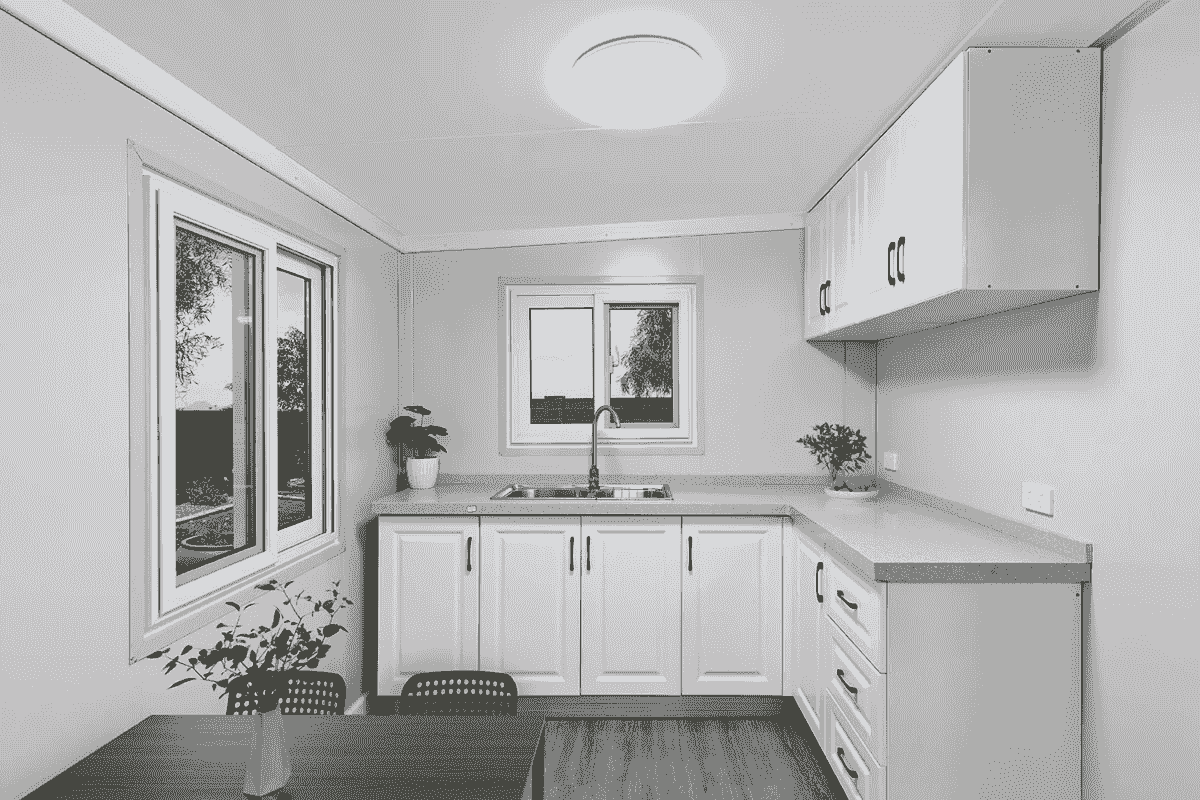

    UVO expandable houses feature multiple interior and exterior options that can be cleverly customized to suit appearance and security needs, allowing customers to choose from a variety of home package options.The spacious and bright living room accommodates a sofa and desk, creating a comfortable environment for both leisure and work. The bedroom is well-planned, accommodating a double bed and storage cabinets for privacy and relaxation. The bathroom features a shower, washbasin, and toilet, providing comprehensive amenities for daily convenience. The kitchen area is equipped with cabinets, a sink, and electrical outlets to meet basic cooking needs. The overall layout is efficient and practical, making the living experience more comfortable.

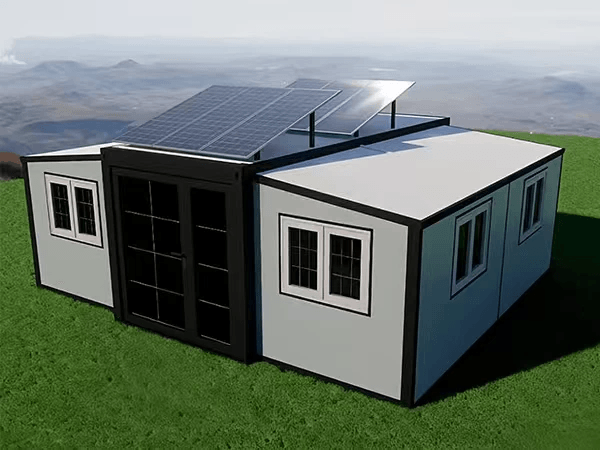

    In addition to furniture and appliances, rooftop and balcony customization can be tailored to the user's desired functional and aesthetic preferences. Custom solar systems are designed to balance environmental protection and energy efficiency. Custom doors and windows offer a wide variety of options. Doors and windows are made of various materials, including steel and aluminum alloy. Windows are available in single-leaf, double-leaf, and sliding styles, while doors are also available in single-leaf, double-leaf, and luxury security doors. Custom flooring is available in two high-quality materials: SPC and PVC. SPC flooring is wear-resistant, waterproof, and highly stable, while PVC flooring offers excellent flexibility, anti-slip properties, and a wide variety of colors and styles.

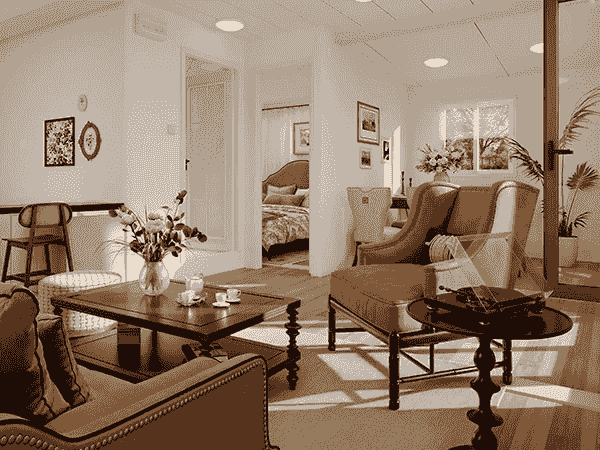

    Living Room

    .

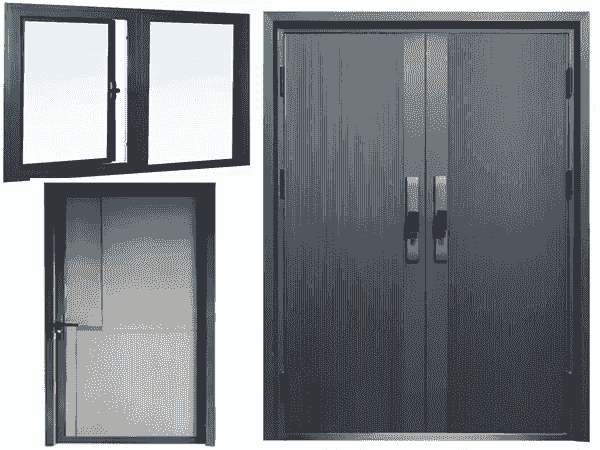

    Doors & Windows

    .

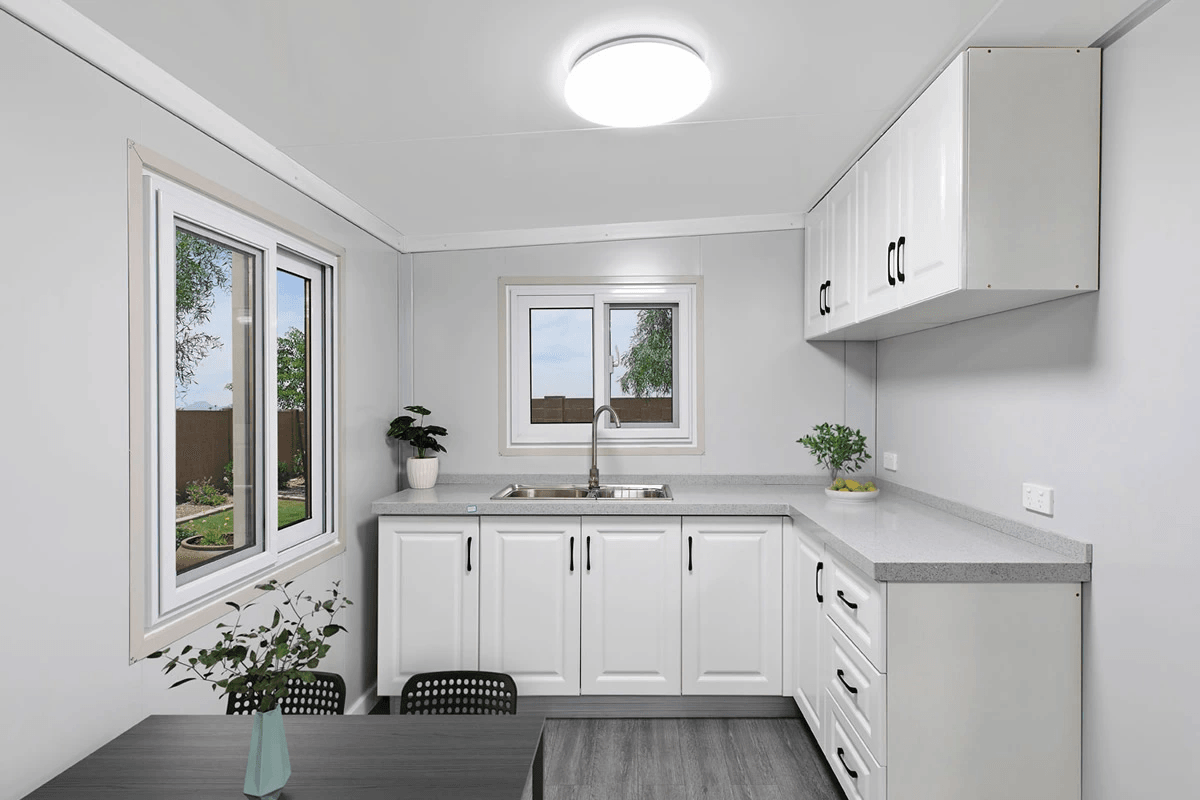

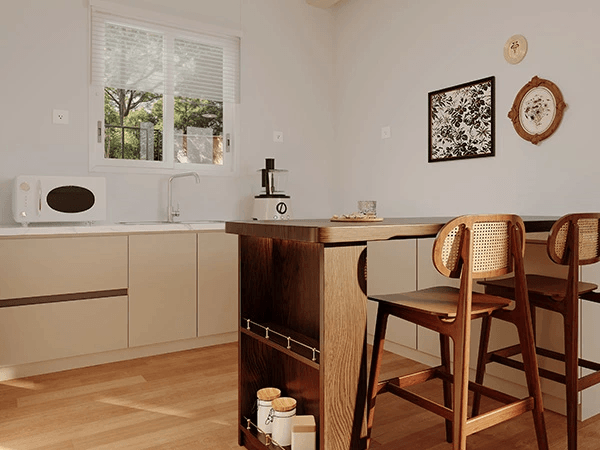

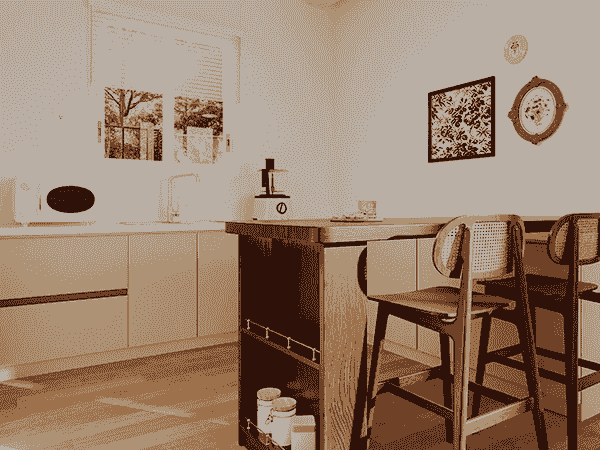

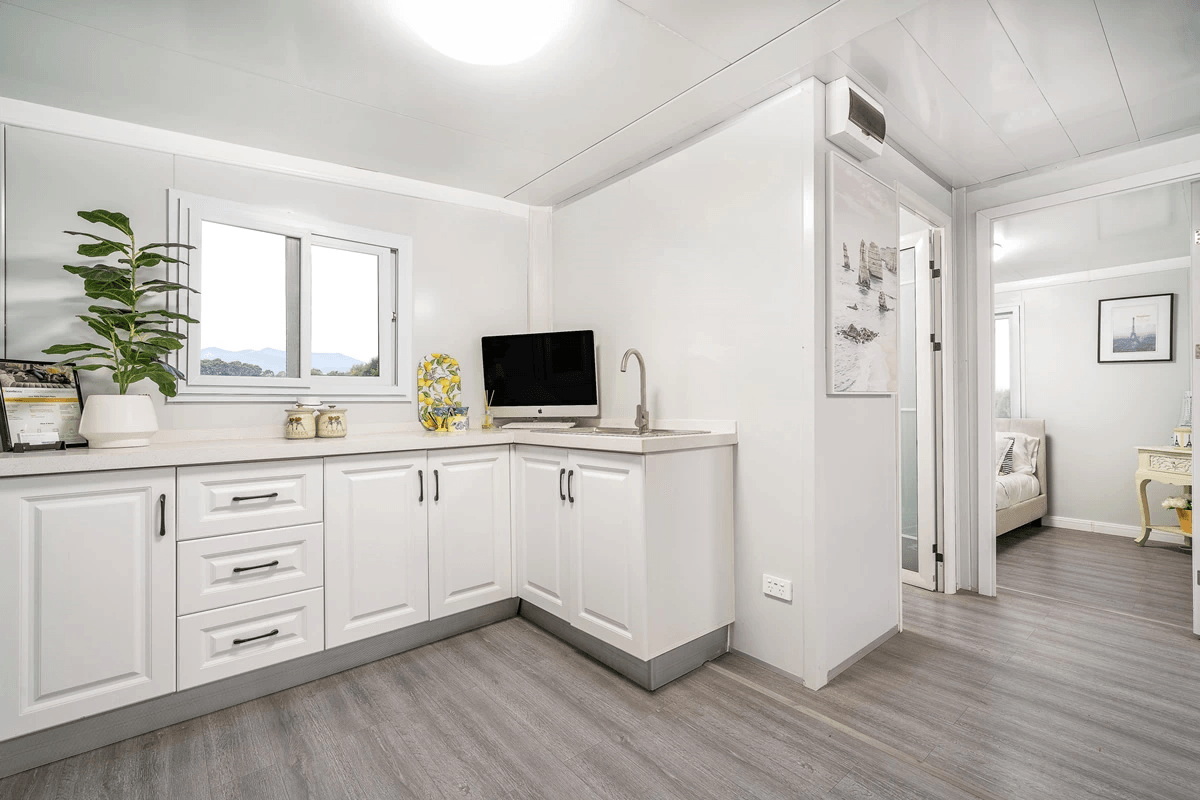

    Kitchen Area

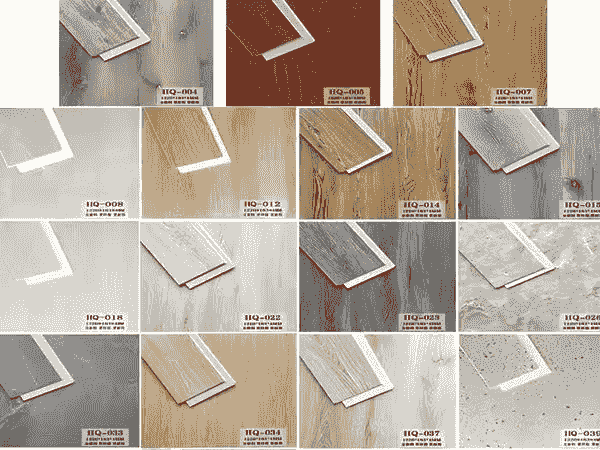

    Custom Flooring

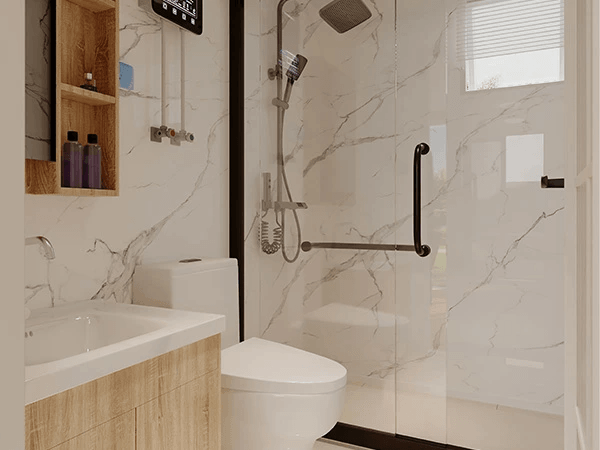

    Bathroom

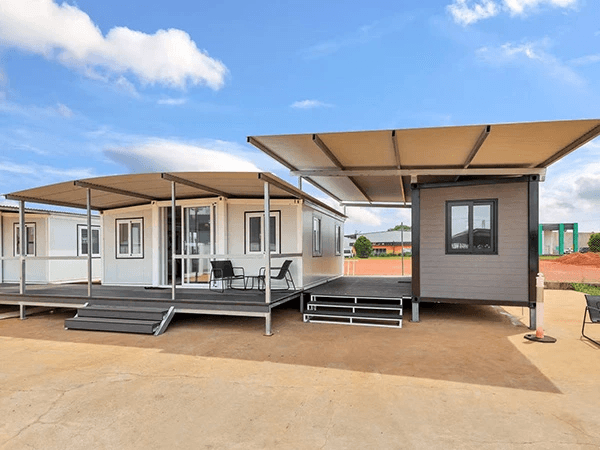

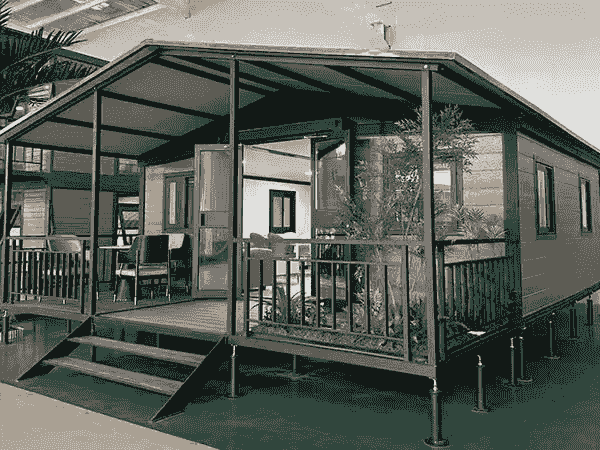

    Outdoor Areas

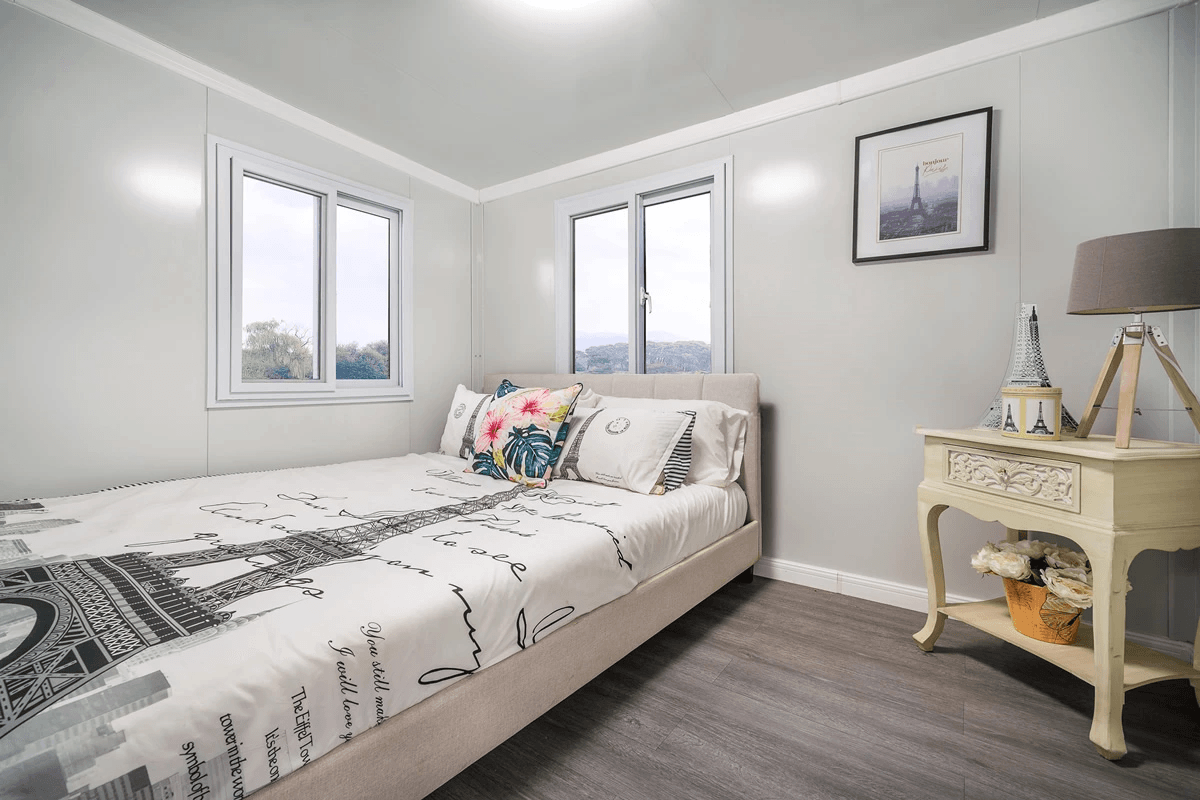

    Bedroom

    Solar Energy Storage

  • Multiple Application Combinations

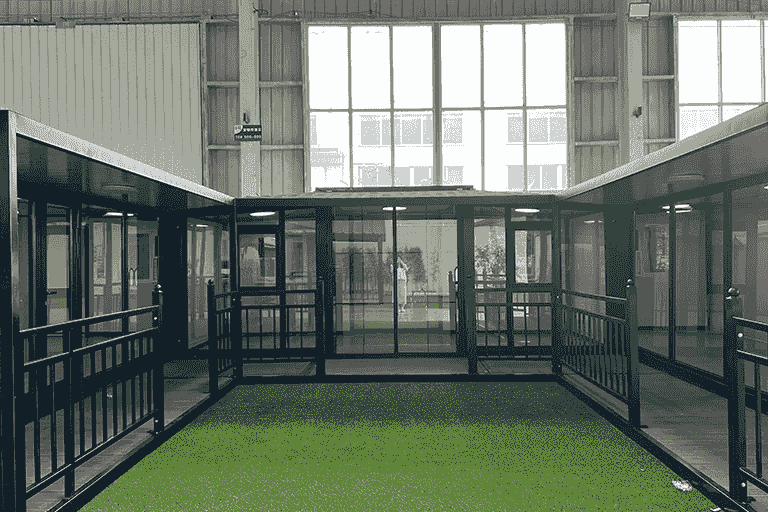

    UVO expandable houses are an ideal choice for a variety of application scenarios with their efficient and convenient installation methods and flexible use of space. In addition to purchasing a 20ft expandable house separately, we also provide a variety of combination solutions, such as a movable trailer model, a three-in-one combination suitable for camping, and a double-layer structure to meet larger space needs.

    Whether it is used for office, accommodation, commercial retail or temporary project camps, UVO can customize different configurations according to customer needs to create a practical, beautiful and easy-to-transport modular space solution.

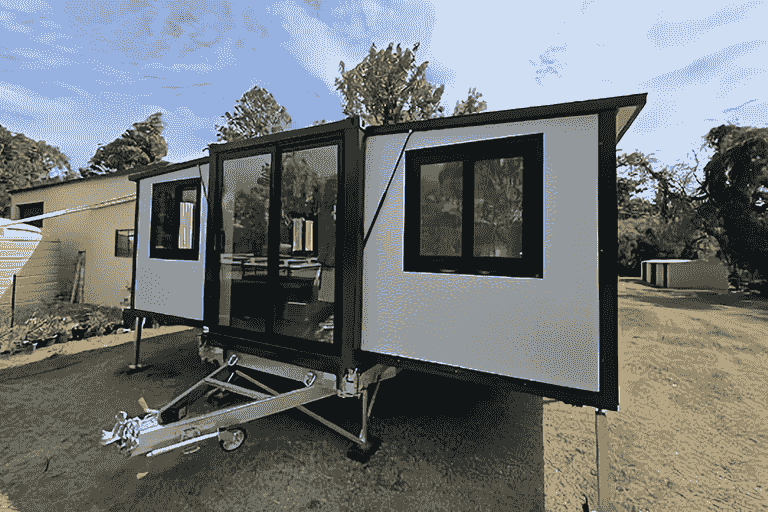

    Trailer Expandable House

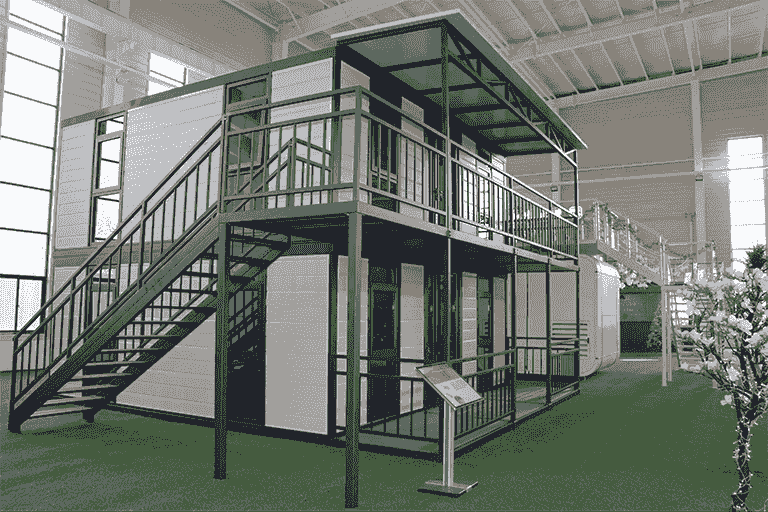

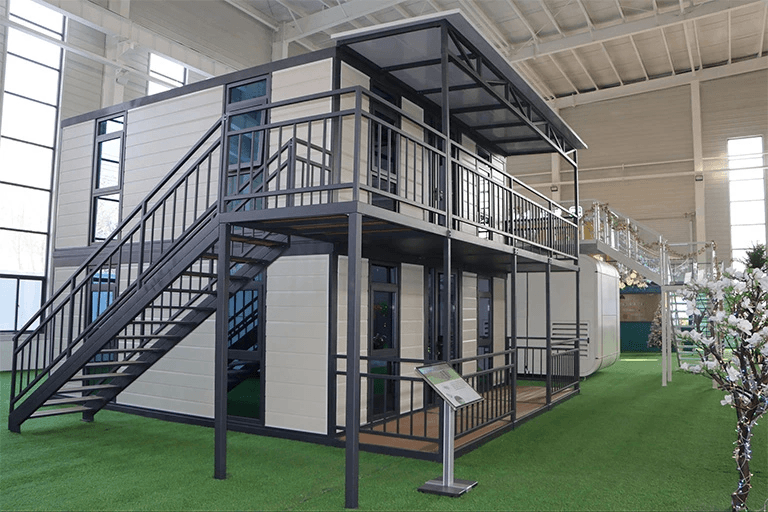

    Double-storey Expandable House

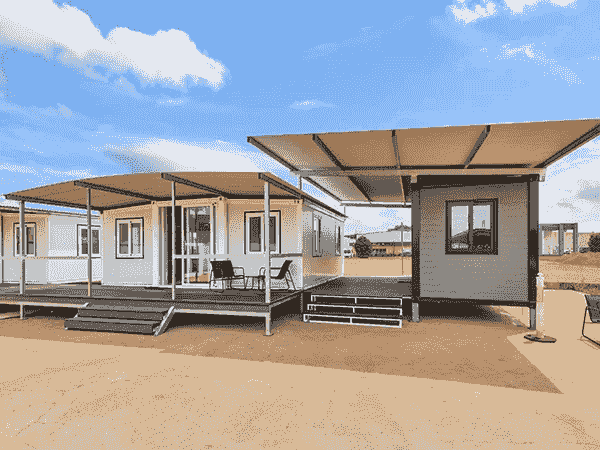

    Three-in-one Expandable House

    Expandable Container House Product Specifications

    Main Frame Material

    Q235 Hot-dip Galvanized Steel

    Circuit System

    Pre-installs local power distribution in different countries

    Bathroom

    Toilet door glass door, integrated shower (sliding door 8mm tempered glass), toilet, wash basin, shower head.

    Wall

    Exterior walls, main roof, and side roofs: 75mm insulated EPS sandwich panels Partitions: 50mm insulated EPS sandwich panels

    Socket

    National standard, Australian standard, British standard, European standard American standard electrical (UL certification)).

    Balcony


    1.5/2/3m front balcony with fence and terrace roo    f

    Voltage standard

    230V Spain Standard Voltage&Plug

    Floor

    Indoor SPC/PVC Flooring

    Kitchen(Optional)

    Cabinets, Wall Cabinets, Sink, Stove.

    Door(Optional)

    Steel, KFC Aluminum Alloy, Thermally Insulated Aluminum

    Window

    Single-glazed/Double-glazed Aluminum alloy Frame

    Furniture (Optional)

    Bed, Table, TV, Fridge, Washing Machine, Microwave, Air Conditioner, Curtains, etc.

    House Systems (Optional)

    Thick Insulation, Triple Glazing, Floor Heating, Pipe Insulation, etc.

    Roof (Optional)

    Balcony Half Roof, Full Roof, Awning Roof (Size: 2200*1500mm).

  • How to install an 20ft expandable container house?

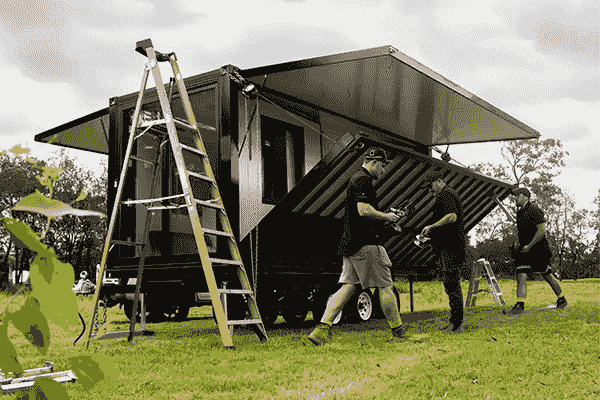

    The UVO 20ft expandable house is designed with modularity to achieve quick installation and deployment. After the house is transported to the site, the staff unlocks the structure, and the left and right roofs are unfolded simultaneously. Then the ground support legs are installed, and the two side wings of the house are moved outward to ensure that the structure is stable before use. No complicated construction is required, and it can be put into use within 2-4 hours. It is suitable for a variety of scenarios such as living and office.

  • Proejcts

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

  • Expandable Container House Frequently Asked Questions

  • Related Products

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

    Feature

    Use a text section to describe your values, show more info, summarize a topic, or tell a story.

  • OUR 4 STEP PROCESS

    01 Request Quote

    Select your desired unit with any additional features & delivery. Receive your final quote so you can arrange finances.

    02 Confirm Quote

    Carry out your due diligence, confirm you are satisfied & ready to proceed. We will then jump on a quick call to confirm.

    03 Start Build

    Once we have received payment we will begin your build. Depending on our capacity this may take up to 3 months..

    04 We Deliver

    Depending on your delivery method, we will either deliver your Expander to you or you can pick it up from our Christchurch yard.
