• Astra F20 — The Elite 20ft Flat Roof Expandable Home

    Sleek Minimalist Design Meets High-Efficiency Modular Living

    • Modern Flat Roof Aesthetic: A clean, contemporary silhouette that fits perfectly into modern urban or natural landscapes.
    • Spacious 38㎡ Interior: A full-scale studio or multi-bedroom layout offering nearly 400 sq. ft. of versatile living space.
    • Superior Thermal Engineering: Features an upgraded 100mm EPS insulated roof on the expandable wings for maximum energy efficiency.
    • Rapid 10-Minute Deployment: Precision-engineered folding systems allow two people to fully expand the home in minutes.
    • Starting from $12,000 USD

  • Why Astra F20?

    Architectural Minimalism

    The flat roof design offers a more "built-in" look compared to traditional pitched-roof prefabs, ideal for high-end ADUs or boutique cabins.

    Enhanced Logistics

    Optimized for global transport, our flat-roof design ensures easier stackability and fits 2 full units in a standard 40HQ container.

    Rugged Resilience

    Hot-galvanized steel frame with electrostatic white powder coating provides a 20+ year lifespan with minimal maintenance.

  • Technical Specifications

    Customizations for local building codes and extreme climates are available upon request.

    Dimensions & Space

    • External Dimensions (Open): 5900mm (L) x 6420mm (W) x 2450mm (H)
    • External Dimensions (Folded): 5900mm (L) x 2250mm (W) x 2450mm (H)
    • Internal Dimensions: 5740mm (L) x 6260mm (W) x 2250mm (H)
    • Total Area: 38 ㎡
    • Weight: Approx. 2.5–2.8 Tons

    Structure & Materials

    • Main Frame: Hot-dip galvanized steel with electrostatic spraying (Pure White finish).
    • Wall Panels: 65mm EPS color steel composite panels (0.3mm double-sided steel).
    • Main Roof: 50mm EPS color steel composite board + 0.45mm corrugated steel veneer.
    • Wing Roofs: Upgraded 100mm EPS insulation for superior overhead heat protection.
    • Flooring: 18mm Bamboo glue board base + 4mm premium SPC stone plastic finish.

    Openings & Hardware

    • Entrance Door: High-security broken-bridge aluminum or fire-rated steel door.
    • Windows: Double-glazed aluminum or plastic-steel sliding windows.
    • Hinges: 130mm heavy-duty galvanized embedded hinges for high-cycle use.

    Electrical & Systems

    • Standard: Pre-installed CE/UL/SAA compliant electrical systems.
    • Capacity: Integrated 12KW system with LED lighting and international sockets.
    • Utilities: Pre-wired and pre-plumbed for immediate site connection (Plug-and-Play).

    Kitchen & Bathroom

    • Bathroom: Fully equipped with smart toilet, washbasin, mirror, and high-pressure shower.
    • Design: Wet/Dry separation layout as standard.

  • Layouts & Lifestyle

    Design Note: The flat roof provides a consistent internal ceiling height, creating a sense of volume and modern luxury often missing in traditional prefabs.

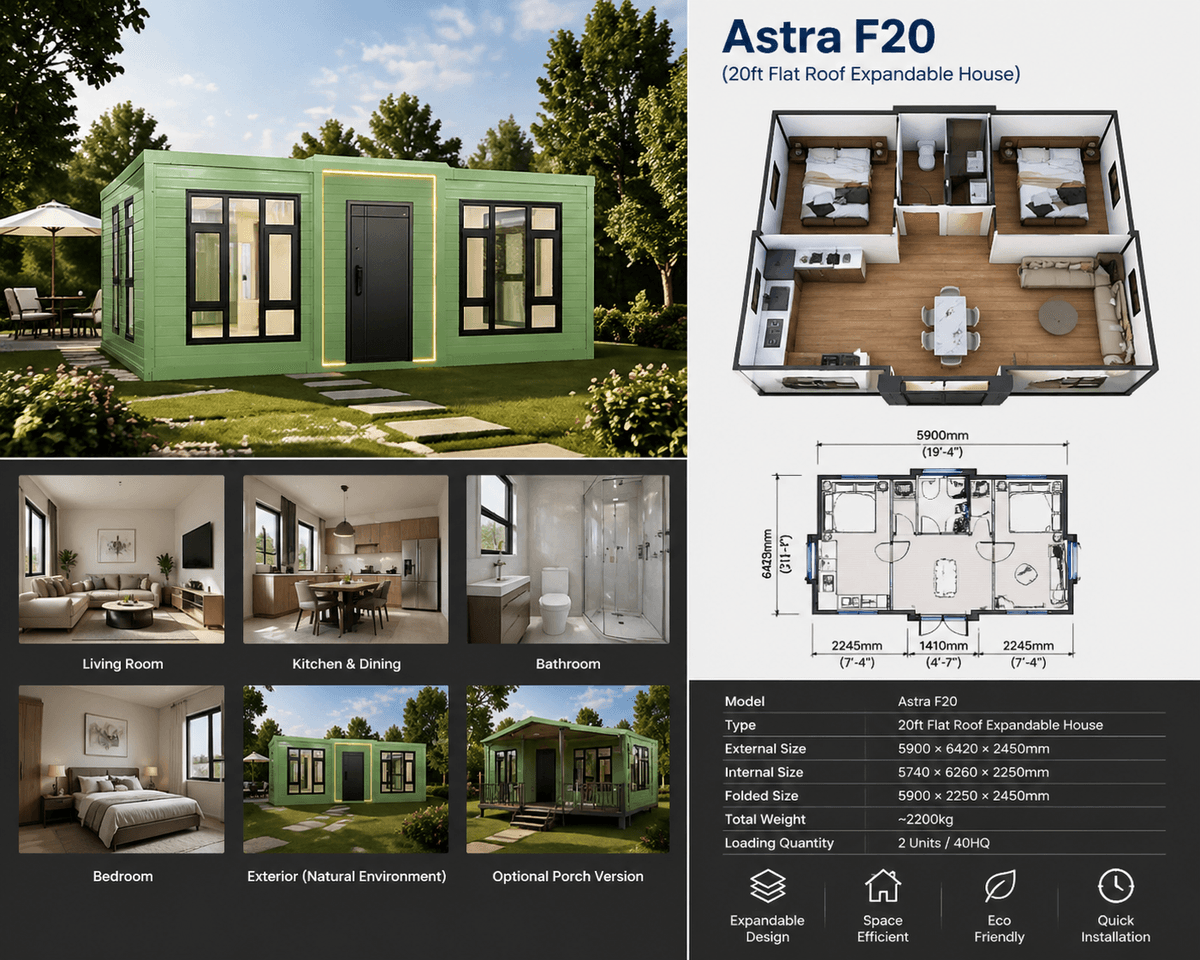

    Astra F20 38m2 modern floor plan and 3D layout diagram.

  • Frequently Asked Questions

  • Get Your Free Quote Now

    Feel free to reach out to us through any of the contact options provided below.

    We'll get in touch with you within 24 hours.
